Enable Mermaid for Github Pages
Mermaid is a powerful tool for drawing diagram in Markdown pages. The following steps are used to enable mermaid in Github Pages.
Ref.
Steps
- Find the latest mermaid javascript (cdnjs as example):
https://cdnjs.cloudflare.com/ajax/libs/mermaid/11.5.0/mermaid.min.js - Include the following scripts in html page or layout page.
<!DOCTYPE html>
<html lang="en-US">
<head>
...
<script src="https://cdnjs.cloudflare.com/ajax/libs/mermaid/11.5.0/mermaid.min.js" type="text/javascript"></script>
...
</head>
<body>
...
<script>
var config = {
startOnLoad: true,
theme: 'forest',
flowchart: {
useMaxWidth: false,
htmlLabels: true
}
};
mermaid.initialize(config);
window.mermaid.init(undefined, document.querySelectorAll('.language-mermaid'));
</script>
</body>
</html>

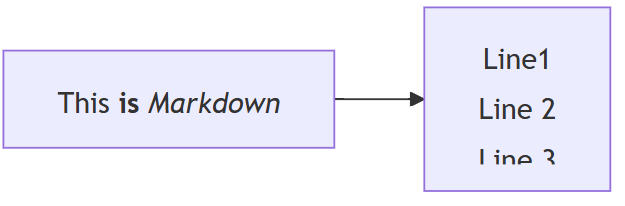

Test by adding mermaid code block
```mermaid
%%{init: {"flowchart": {"htmlLabels": false}} }%%
flowchart LR
markdown["`This **is** _Markdown_`"]
newLines["`Line1
Line 2
Line 3`"]
markdown --> newLines
```
Optional: tips of changing chart style
By default, the chart is rendered based on the site css styles. Sometimes, the style doesn’t satisfy requirements. One problem I encountered is, my site background is black and the lines between shapes are also with black color. This made the lines invisible.
To fix this problem, I use css selector to find the rendered objects <pre>. The mermaid markdown code is rendered as the following.
<pre><code class="language-mermaid" data-processed="true">
<svg ...>...</svg></code></pre>
Select <pre> using (has) combinator and class “language-mermaid” which is rendered by mermaid. Then change css style. Here’s the css I’m using.
<style>
/* mermaid */
pre:has(code.language-mermaid) {
background-color:wheat !important;
}
</style>
